Graphite Film
- High thermal conductivity, Up to 1900 W/m-k@X-Y axis and 15 W/mk@Z axis, thickness option low to 0.01mm
- Material’s advantage provides huge benefit for customers’ designing
- Roll material (L200*W400mm) available
- Patented Sealing (edge-sealing) process
- Suitable for complex thermal surface, with optional treatment for edge and PSA
Capacity: 900,000m²/month

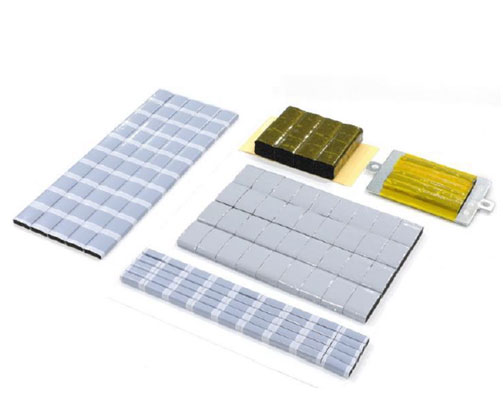

Graphite Over Foam Gasket (GOF)
- Foam coated with high thermal conductive graphite film
- Low pressure force, high pressed volume, excellent thermal conductivity
- Compared with regular thermal conductive pad/conductive gel, GOF has the advantages like low density, no silicone oil volatilization, etc.
- This product can not only play an excellent heat transfer function in the low-strength structure, but also bear the lateral friction. It can be used for the heat dissipation of multiple pressing (SWITCHING) and plugging devices.
- Various combinations can be customized
